Arezzo Matt Black Complete Modern Bathroom Package (incl. L-Shaped Bath)

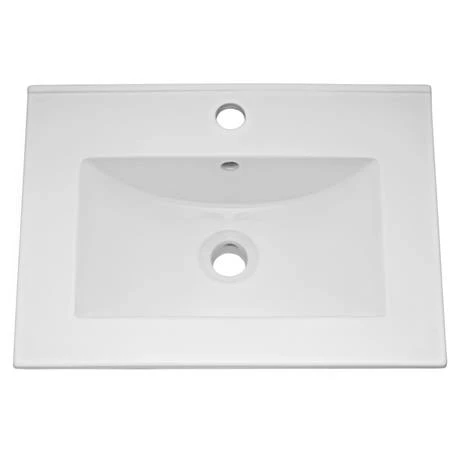

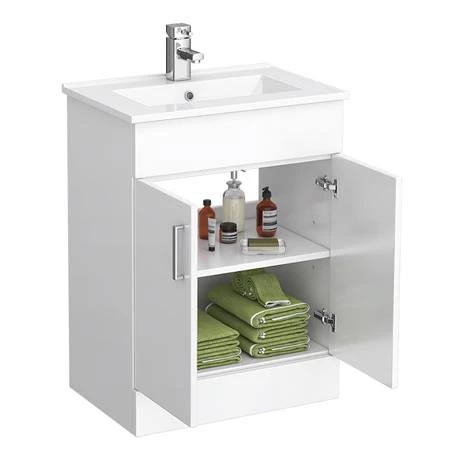

Vanity Details

• Height: 825mm
• Width: 620mm
• Depth: 400mm
• Vanity unit with quality ceramic basin top
• Tap Holes: 1
• Integral overflow (use slotted basin waste)
• Chrome handles
• 2-Door
• Soft Closing Mechanisms
• Gloss white finish
• All units supplied rigid – not flat packed
• Floor Standing Units must be fitted back to wall through the backrail using suitable fixing kit (not included).

Toilet Details

• Height: 770mm
• Width: 370mm
• Depth: 600mm
• Height of Pan: 400mm
• Type: Close Coupled Toilet
• Material: Ceramic
• Colour/Finish: White Gloss
• Cistern has button operated, dual flush siphon
• Central, Dual chrome effect push-button flush (4/6ltr Flush)
• Waste pipe exits horizontally
• Includes wrap over quick release soft-close seat and cover
• Water Inlet: Left or right hand bottom

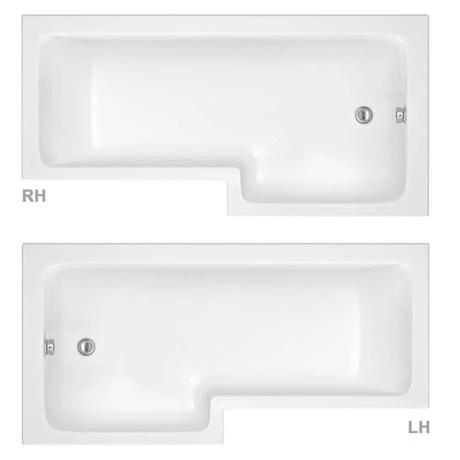

Bath Details

• Type: L-Shaped Shower Bath
• Dimensions: 1700mm x 700mm (850mm at widest point)
• Colour/Finish: Gloss White
• Material: Acrylic
• Comes with metal bath legs
• Supplied with quality acrylic front panel
• No tap holes
• Tap holes have to be drilled by customer

Bath Screen Details

• Height: 1400mm
• Width: 805mm
• Polished chrome
• Reversible
• Hinged Screen with fixed return
• Metal caps
• 6mm toughened safety glass.
• For use with square shower baths

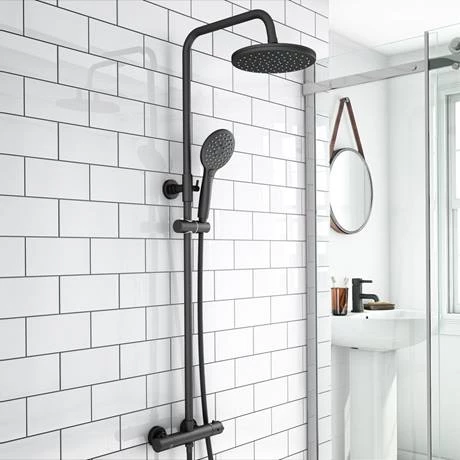

Shower Details

• Rigid riser height: 850-1150mm
• Length of shower head arm: 340mm
• Overhead shower head size: 195mm Diameter
• Finish: Powder Coating Matt Black
• Thermostatic shower, consisting of a round thermostatic bar valve and rigid riser kit with twin round shower heads
• Easy to divert water from handset to overhead drencher with in-built diverter
• High quality design and build
• Adjustable height
• Fixed Handset holder
• Latest ceramic disc technology
• Thermostatic shower system that cuts out the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m Quality flexible hose
• Easy to clean rubber jets which are included on both the main shower head and handset
• Incorporating diverter to control flow between overhead to hand shower
• One fixed head and one multi-function handset.
• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage.
• Round thermostatic mixing valve of brass construction with built-in diverter and matt black finish.
• Rigid riser with matt black finish
• Easy installation
• 150mm between pipe inlet centres
• 15mm inlet feeds
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Please note: Certain parts are plastic, not metal

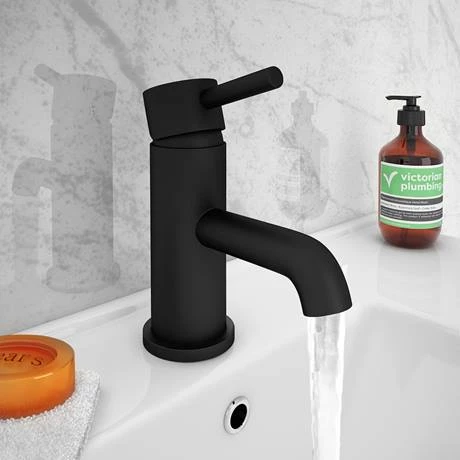

Basin Tap Details

• Overall height: 148mm
• Spout height: 51mm
• Projection from centres: 101mm
• Colour: Matt Black
• Material: Solid Brass Body
• Type: Basin Mixer Tap
• Tap Head: Round Lever Design
• Style: Modern
• High quality design and build
• Easy installation
• Deck Mounted
• Working Pressure: 0.5 Bar – 5 Bar
• Hot and cold indicators (H & C) on tap head
• Pipe Size: 15mm (1/2″ BSP)

Bath Tap Details

• Overall height: 135mm
• Spout height: 53mm
• Projection from centres: 110mm
• Colour: Matt Black
• Material: Solid Brass Body
• Type: Bath Filler
• Tap Head: Round Lever Design
• Style: Modern
• High quality design and build
• Easy installation
• Deck Mounted
• Working Pressure: 0.5 Bar – 5 Bar
• Hot and cold indicators (H & C) on tap head
• 180mm centres
• 3/4″ BSP

Basin Waste Details

• Diameter: 61mm
• Connection Size: 1 1/4″
• Slotted basin waste
• Manufactured to the Highest Standards
• Finish: Matt Black
• Sprung plug

Bath Waste Details

• Waste Cap Diameter: 70mm
• Overflow Diameter: 84mm
• Waste Pipe Length: 630mm
• Colour/Finish: Matt Black
• Product Type: Easy clean bath waste
• Round design
• Easy to install
• Removable click clack waste
• Fitting Size: Standard 1 1/2 inch bath fitting
• Suitable for most standard baths

All measurements are approximate

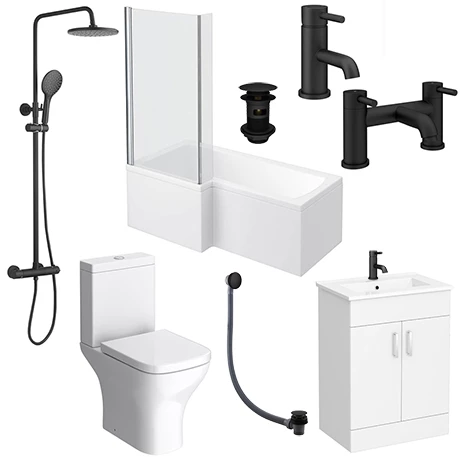

Comprises



(1) Turin 620 Gloss White Vanity Sink With Cabinet

(1) Venice Modern Toilet + Soft Close Seat

(1) 1700 L-Shaped Square Shower Bath

(1) 1700 L-Shaped Acrylic Front Panel

(1) Hinged Glass Bath Screen

(1) Arezzo Matt Black Modern Round Thermostatic Shower

(1) Arezzo Matt Black Single Lever Basin Tap

(1) Arezzo Matt Black Bath Filler Tap

(1) Arezzo Matt Black Easy Clean Click Clack Bath Waste with Overflow

(1) Arezzo Matt Black Slotted Click Clack Basin Waste
