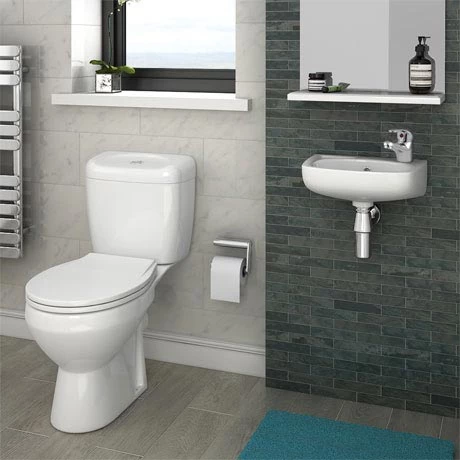

Avon Compact Cloakroom Suite

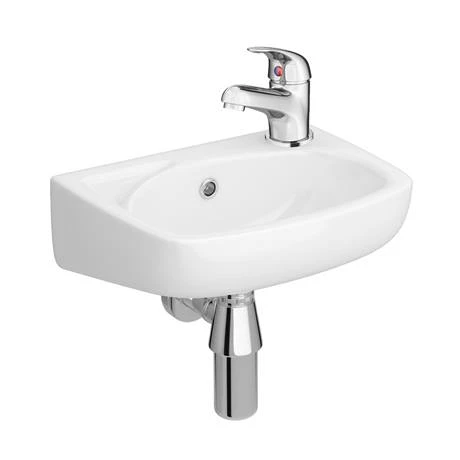

Basin Details

• Width: 350mm
• Depth: 280mm
• Height: 140mm
• Wall mounted cloakroom basin
• Tap Hole: 1
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Basin with overflow
• Wall fixings sold separately

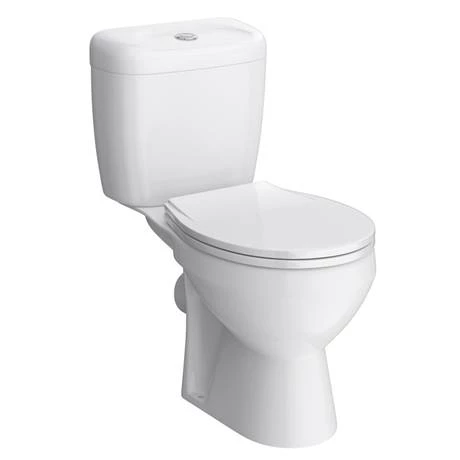

Toilet Details

• Width: 382mm
• Depth: 630mm
• Height: 748mm
• Distance from waste to wall is 130mm
• Material: Ceramic
• Colour/Finish: White Gloss
• Close coupled open rim washdown P pan
• Cistern has button operated, dual flush siphon
• 4 and 6 liter flush with chrome effect buttons
• Waste pipe exits horizontally
• Supplied as a pan pack – pan, cistern, toilet seat and cover in one box
• Compliance / Approvals
• BS 3402: 1969: Specification for quality of vitreous china sanitary appliances
• BS EN 33 WC pans with close coupled cistern, connecting dimensions
• BS EN 997 WC pans with integral trap.
• The flush mechanism is WRAS approved.
• Water supply regulations 1999
• Water inlet bottom left when facing WC

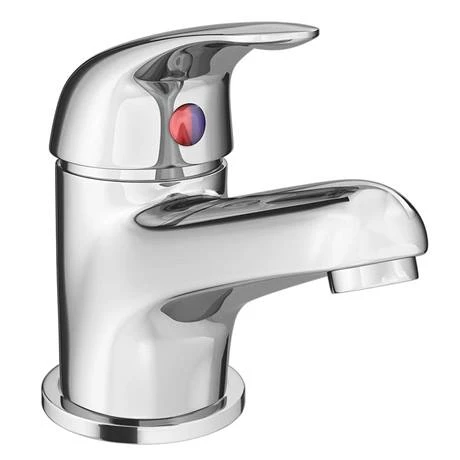

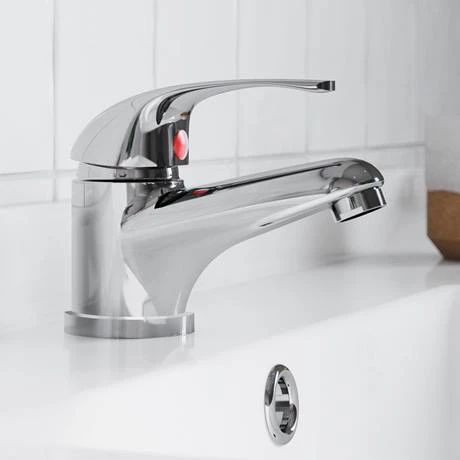

Modern Single Lever Basin Tap Details

•
  High quality design
•
  Chrome Finish
•
  Manufactured from solid brass
•
  1/4 Turn Disc Valve Technology
•
  Brass Body
•
  1/2″ BSP

Basin Bottle Trap with 190mm Extension Tube Details

• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Bottle Trap, extension & flange
• Complete with fittings
• Adjustable height and adjustable outlet
• Smooth Operation with Quality Components

All measurements are approximate

Package Contents

(1) Ceramic WC Pan & Toilet Seat
(1) Modern Single Lever Basin Tap – Chrome
(1) 350mm Wall Hung Cloakroom Basin – 1 Tap Hole
(1) Basin Bottle Trap with 190mm Extension Tube – Chrome
