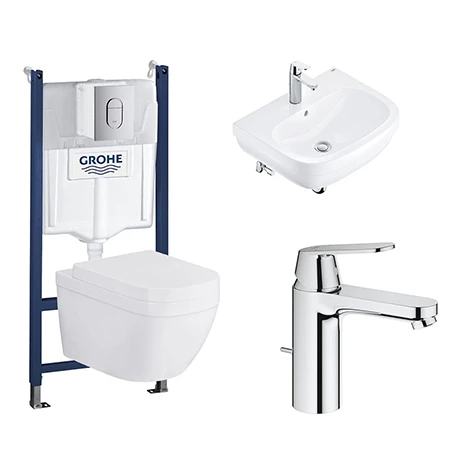

Grohe Solido Euro/Arena COMPLETE Wall Hung Suite (600mm Basin + Cosmo Smart Tap)

The Solido Euro/Arena complete wall hung suite is perfect for bringing great style to any modern bathroom setting. Without any compromise on style and good looks the wall hung option provides a bathroom design solution delivering a completely clear and open floor area. Package includes everything you need to give your bathroom a fresh new look!

The Solido Euro WC pack is a complete set consisting of support frame and cistern, dual flush plate, wall hung pan and soft close seat. The steel support frame gives you the freedom to design your ultimate bathroom by providing a secure and quick method of installing WCs. Each frame comes pre-assembled with sanitary ware fixings and is subject to stringent testing.

The Euro Ceramic complete basin package consists of wall hung basin, tap and waste, tubular p-trap, shut-off valves and fixing kit. The basin is manufactured from high grade vitreous china and finished in Alpine White. The stylish basin tap is supplied with an integrated pop-up waste and features GROHE EcoJoy® water saving function.

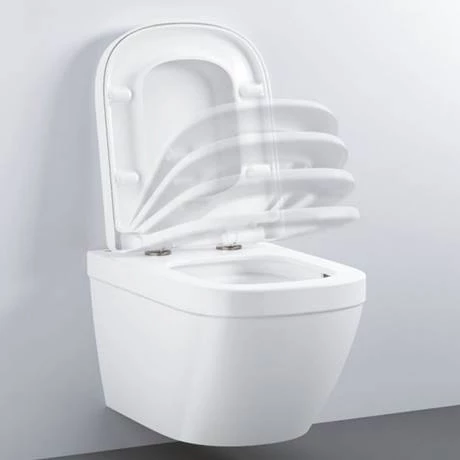

Pan Details

• Height: 420mm
• Width: 374mm
• Projection: 540mm
• Brand: Grohe
• Range: Euro Ceramic
• Type: Wall hung WC pan
• Material: Vitreous china
• Colour: Alpine white finish
• Horizontal outlet
• Triple Vortex
• Easy-clean rimless technology
• Supplied with WC seat with quick release action and Soft Close feature

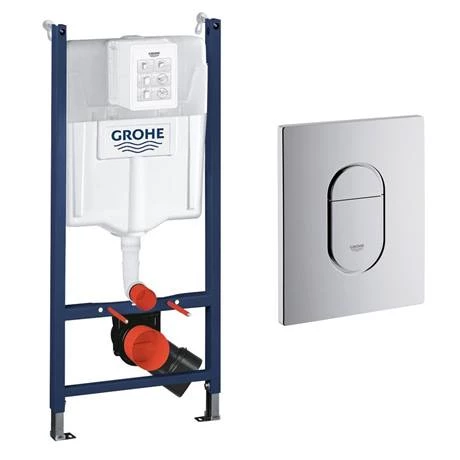

Frame Details

• Height: 1135mm
• Width: 500mm
• Brand: Grohe
• Steel frame for dry lining fixed object connections
• Fastening material with quick adjustment and height safety device
• 2 WC holding bolts
• Ceramic fixing Screw spacing 180/230 mm
• Drain elbow Ø 90 mm
• depth adjustable
• reducer Ø 90/110 mm
• inlet and outlet
• cistern GD 2, 6-9l
• factory setting 6l and 3l
• pneumatic drain valve with two functions:
• Set or start & stop
• water connection from left / right / rear or top Faucet group

Flush Plate Details

• Width: 156mm
• Height: 197mm
• Depth: 10mm
• Brand: Grohe
• Range: Arena
• Type: WC Wall Flush Plate
• Finish: Chrome
• Material: ABS
• For dual flush or start & stop actuation
• Easy to clean thanks to the GROHE StarLight® chrome coating

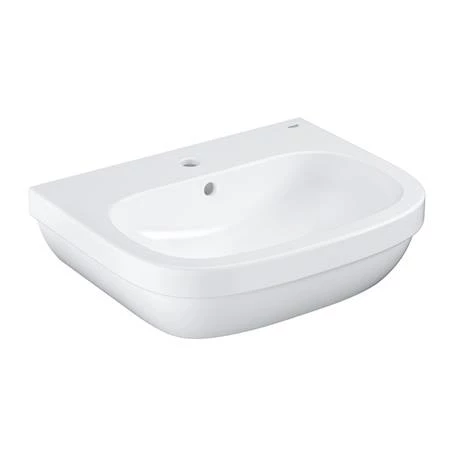

Basin Details

• Dimensions: (H)133 x (W)596 x (D)483mm approx.
• Colour: Alpine White
• Material: Vitreous China
• Wall hung
• Single tap hole
• With overflow

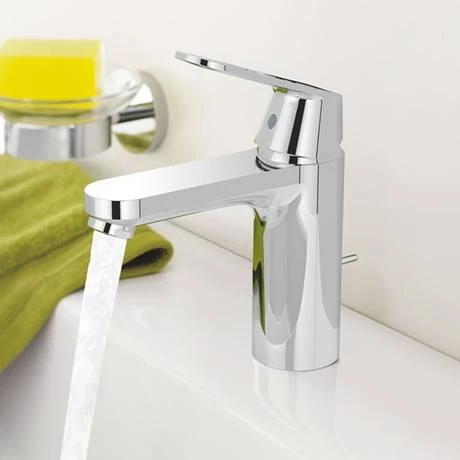

Tap Details

• Finish: Chrome
• Height: 206mm
• Projection: 123mm
• M-Size
• Basin Mixer 1/2″
• GROHE eco joy with water saving function for reduced consumption
• Easy to clean thanks to the GROHE star light chrome coating
• GROHE silk move cartridge technology for smooth handling
• Rapid installation system
• Pop-up waste set 1 1/4″
• Minimum Recommended Pressure: 0.5 – 5.0 bar
• Flexible connection hoses

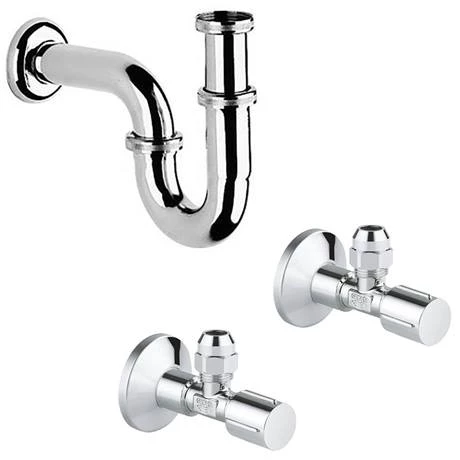

P-Trap Details

• For basins
• Wall connection
• Escutcheon
• GROHE StarLight chrome finish

Shut-Off Valve Details

• Self-sealing connection thread
• Wall connection 1/2″
• Outlet 3/8″
• With length compensation
• With compression nut Ø 10mm
• Water protected spindle shutoff, brass,
• With grease chamber and double o-ring sealing
• Long connecting shaft
• Ergonomic metal handle
• Marking: Neutral
• Metal push-on escutcheon Ø 55mm
• GROHE StarLight finish

All measurements are approximate

Comprises

(1) Rimless Euro Ceramic Triple Vortex Flush WC
(1) Soft close and quick release seat
(1) Arena Flush plate (vertical and horizontal positioning)
(1) Solido Frame 1.13m / 3/6L Cistern
(1) Wall brackets and noise protection included
(1) Grohe Euro Ceramic 600mm 1TH Wall Hung Basin
(1) Grohe Eurosmart Cosmopolitan M-Size Mono Basin Mixer with Pop-up Waste
(1) Chrome P-Trap
(2) Angled Shut-Off Valve
(1) Wall Fixing Kit
