Bath is available in a choice of either 1695mm or 1795mm sizes.

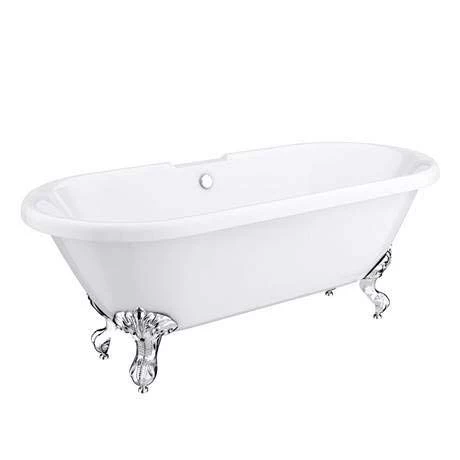

Duke Double Ended Roll Top Bath Details
- Length: 1695 / 1795mm
- Width: 755 / 785mm
- Height: 620mm
- Bath Type: Double ended bath with tap ledge

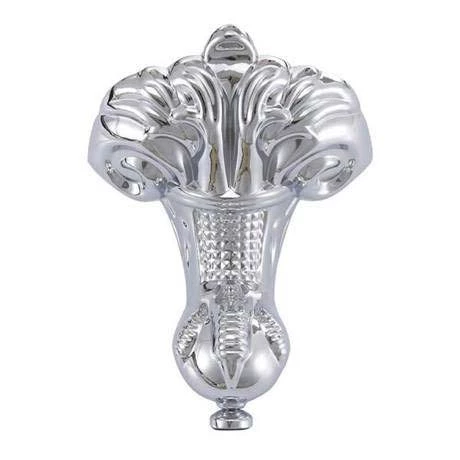

- Foot Style: Chrome Ball + Claw Feet
- Material: Twin Skinned Acrylic / Chrome Plated Alloy
- Tap Holes: 0
- Colour/Finish: White Gloss / Polished Chrome
- Water capacity from bottom to overflow: 173L / 185L
- Tap holes have to be drilled by customer
- All measurements are approximate
- All Baths have adjustable legs (so you can even level your bath on an uneven floor)
- The baths are made from two 3.5mm sheets of acrylic with a fiberglass-resin filler layer which reinforces and insulates the bath.
- There will be an element of compression in the thickness due to the bath forming process but the advised overall thickness would be around 11mm.
- Guarantee: Bath (5 Year) Metal claw feet (1 Year)
Traditional Toilet Details
- Width: 480mm
- Depth: 760mm
- Height: 860mm
- Toilet seat height: 390mm
- High quality traditional style design
- Gloss white finish
- Complete with cistern fittings
- Toilet pan supplied with toilet seat
- Supplied with Luxury Ceramic Cistern Lever Handle
- Installation and maintenance instructions included
- Beech wood finish toilet seat with chrome Hinges
Traditional Basin & Pedestal Details
- Width: 580mm
- Depth: 470mm
- Height: 835mm
- Height of back detail: 80mm
- 2 tap hole ceramic basin
- High quality traditional style design
- Gloss white finish
- Includes full pedestal
- Guarantee: 5 Year

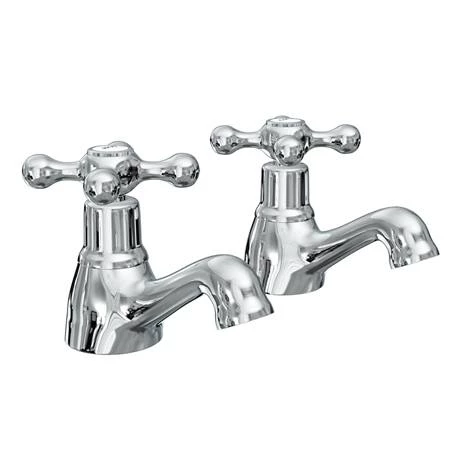

Basin Taps Details
- High quality design
- Chrome Finish
- Brass Internals
- We recommend a minimum pressure of 0.5 bar for best performance
- Guarantee: 5 Year

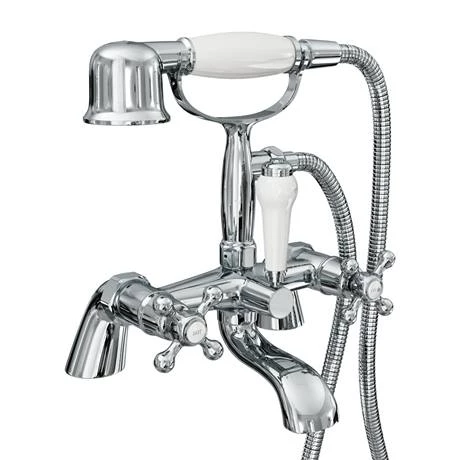

Bath Shower Mixer with Handset Details
- High quality design
- Manufactured from highly durable brass
- Attractive Chrome finish
- We recommend a minimum pressure of 0.5 bar for best performance
- Guarantee: 5 Year
Basin Waste With Brass Plug & Ball Chain Details
- High Quality
- Brass Plug and ball Chain for Basin
- Chrome Finish
- Guarantee – 5 Year
Luxury Exposed Bath Retainer Waste Details
- Colour/Finish: Chrome
- Material: Brass Internals
- High Quality Design
- Manufactured to the Highest Standards
- Suitable for baths up to 20mm thick.
- Guarantee: 5 Year
Pictures for illustrative purposes only.
All measurements are approximate

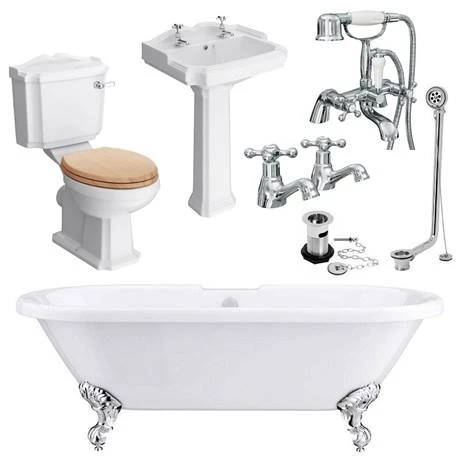

Package Contents
(1) Duke Double Ended Roll Top Bath with Chrome Ball + Claw Feet
(1) Oxford 2 Tap Hole Basin
(1) Oxford Cistern Inc. Fittings
(1) Oxford Close Coupled Toilet
(1) Oxford Pedestal
(1) Traditional Basin Taps – Chrome
(1) Traditional Bath Shower Mixer with Shower Handset – Chrome
(1) Basin Waste with Brass Plug & Ball Chain – Chrome
(1) Luxury Exposed Bath Retainer Waste – Chrome
(1) Beech Wooden Toilet Seat
(1) Luxury Ceramic Cistern Lever
